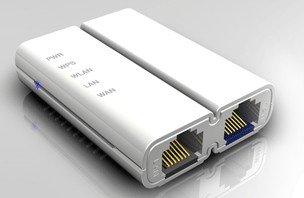

300M Mini Wireless Router - ELODIE 38

300M Mini Wireless Router - ELODIE 38

This is a Mini-fast ethernet switch with outstanding performance and high efficiency. With the 3 10/100M ports with NWay auto-negotiation function, the device fulfills the needs of connecting the partners of network with best network speed and Duplex mode automatically. It is ideal for SOHO and Home network. Unlike shared 10/100 Mbps networks, the switch eliminates the bandwidth congestion problem by providing dedicated bandwidth. Duplex mode also doubles the bandwidth by enabling two-ways communication.

The Price, Shipping and handling only for Canada useres!


Introduction

This is a wireless router with 2T2R MIMO technology providing an excellent network solution for home, SOHO and hotspot users. It complies with standards IEEE 802.11n with data rate up to 300 Mbps, and IEEE 802.11b/g with maximum data rate of 54 Mbps. It can also interoperate with all the 11/54 Mbps wireless (802.11b/g) products.
The router allows multiple users to share one broadband connection, as well as secures your private network. With its built-in two ports switch and wireless AP, LAN users can share files, printers, or playing network games.
To provide a secure wireless network, this router supports wireless data encryption with 64/128-bit WEP, WPA and WPA2. Network Address Translation (NAT) Firewall is also support to shield your communications and network from hackers and wireless eavesdroppers.

Key features Product specifications

Provide two 10/100Mbps Ethernet ports(one WAN port & one LAN port)
Comply with IEEE 802.11n and IEEE802.11b/g wireless standards 2.4GHz frequency band and 2T2R Provides two 802.11n/b/g wireless internal antennas
High speed transfer rate up to 300Mbps
Support auto-MDI/MDI-X, backpressure and flow control
Support IEEE802.1x port-based and MAC-based network access Control
Support wireless security for WEP, WPA TKIP and WPA2 AES PSK and pair-wise key authentication services
Support Static IP, DHCP Client, PPPoE, Firewall and NAT IP Sharing
Support MAC Clone function
Support Multiple APs (up to 4 AP SSIDs)
Support Wireless auto-channel selection
Support WMM and WMM-APSD funcion
Support WPS supported in AP and client mode
Support Statistics, VPN Pass-through, System Log
Support IEEE802.3az Energy Efficient Ethernet Provide one WPS/RESET button
Support Auto IP
Support WPS2.0

Standards

IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3,

IEEE 802.3u, 802.3ab IEEE802.3x

Interface

WAN: One 10/100Mbps RJ-45 port

LAN: 1-port 10/100Mbps Ethernet, RJ-45

1* Reset / Restore to factory default/WPS button

Security

64/128-bit WEP, WPA, WPA2

Receiver Sensitivity

802.11b: -86dBm, 802.11g: -71dBm, 802.11n: -67dBm

Channel

USA 11, Europe 13

Transmit Power

802.11b 16dBm, 802.11g 13dBm,

802.11n 20MHz and 802.11n 40MHz 13dBm

Range Coverage (depend on use of environment)

Outdoor: up to 100 meters

LED Display

Power/Status*1, WLAN*1,WPS*1, WAN*1, LAN*1

Environmental

Temperature:

Operating: 0° ~ 40°C, storage: –10° ~ 70°C

Storage: 5~95% RH, non-condensing

Dimensions

56x42x13.5mm

Power

DC 5V/0.6A (micro USB Cable)

Certification

FCC, NCC, CE

Features

1.Ultra Compact Size - Measures just 2.2 x 1.7 x 0.6 inches and weighs less than 2 oz
2.300 Mbps WiFi N Extender & Router + 1-Port Switch
3.MIMO 3-D Antenna Technology - This wireless router utilizes a Multiple Input/Multiple Output antenna array that broadcasts the Wi-Fi signal in a 360 spherical pattern, which greatly increases wireless coverage and network throughput to dead zones
4.IPv6 Compatible - Access next generation internet services
5.Fast and Easy Setup - Web Browser based Setup Wizard makes router setup fast and easy
6.High-Speed Wireless Networking - This 2T2R router provides wireless data transfer speeds up-to 300 Mbps
7.Intelli+IP Sensing Technology - Patent pending Intelli+IP sensing technology that detects the main network s IP address, and if there is a network conflict, automatically changes the travel router s IP address to resolve the conflict
